Fabrication-Ready CAD
Drawings & 3D Models


Technical drawings for fabrication, CNC, joinery, and workshop builds.

Michael Ackland-Lang

Services

2D Fabrication Drawings

2D drawings for cutting, drilling, welding and assembly. Ideal for workshops, fabricators and makers.

3D
CAD Models

3D models built in Rhino. Perfect for visualisation, prototyping, CNC prep or technical planning.

DXF / STEP / STL Prep

Clean files for CNC or Laser cutting.

Drawing Conversion

Turn sketches or photos into accurate CAD.

Not sure what you need? I can help you figure it out.

Example Work

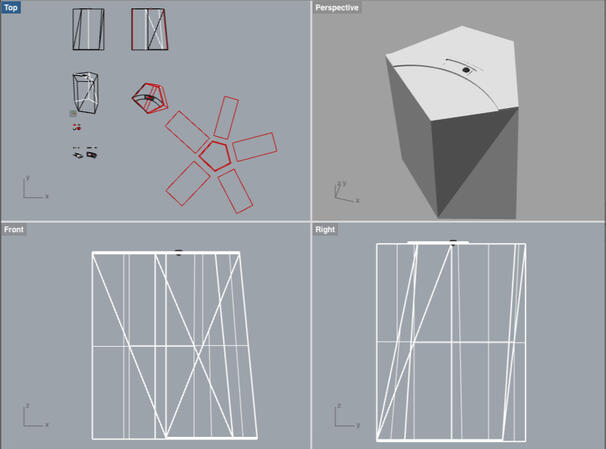

Faceted Plinth - 3D Model & Technical Drawings

A clean 3D model for a faceted plinth with a recessed top section for electronics.

  • Full 3D Model

  • Orthographic Views

  • 2D Linework

  • Dimensioned Drawings

  • Layered File Ready for Fabrication

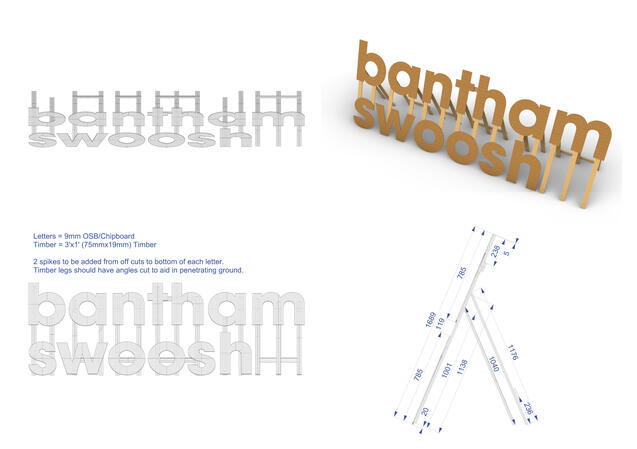

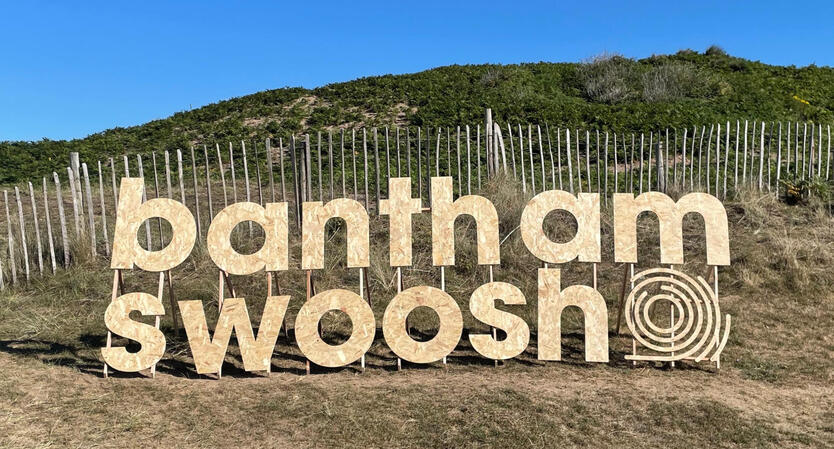

Bantham Swoosh - Technical Drawings & Finished Build

Outdoor lettering project. I produced the technical drawings for the letters and timber supports, then the final build was fabricated from those drawings.

  • 3D Model of Lettering

  • Full Front Elevation

  • Timber Leg Details

  • Materials Specs

  • Build-Ready Drawings used on site

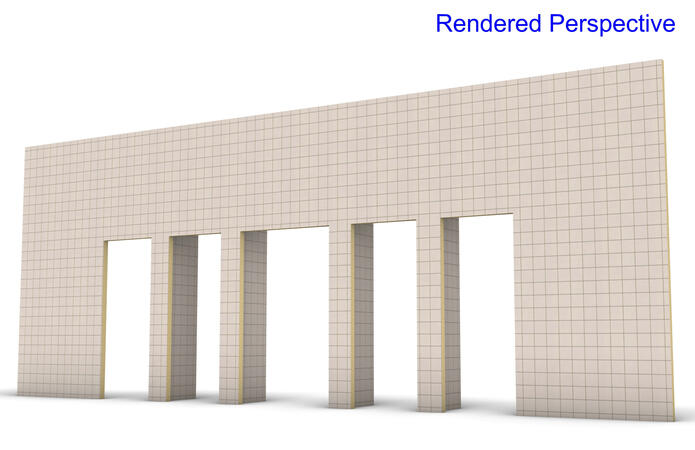

Stage Wall - Construction Drawings & 3D Model

A full construction drawings and 3D model for a tiled stage wall with five openings. Built from my drawings.

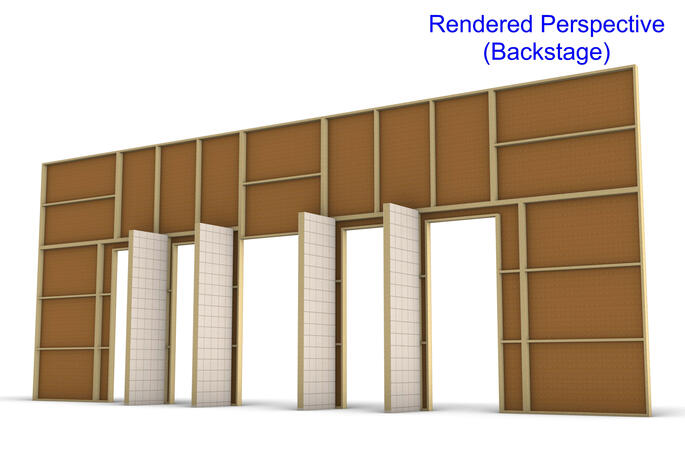

  • 3D Model (Front + Backstage Views)

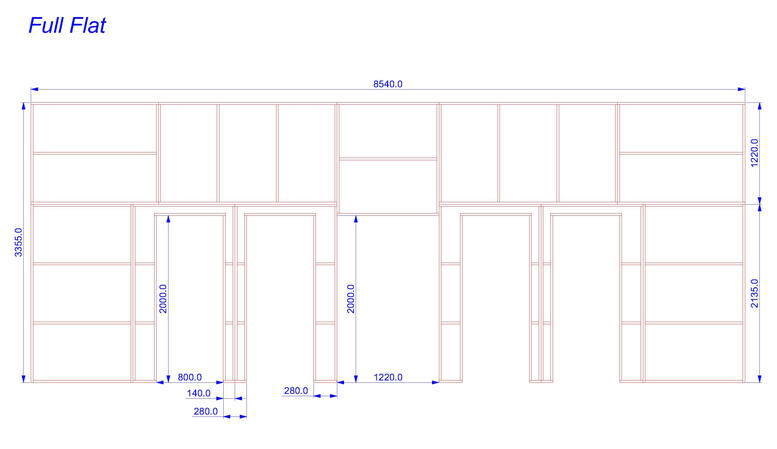

  • Full Flat Construction Drawing

  • Dimensions, Materials, and Panel Layout

  • Build-Ready Documentation

Want something similar?

How I Work

  1. You Tell Me What You Need
    Send me the details — drawings, models, fixes, or something unusual.
    If you’ve got photos or sketches, even better.

  2. I Review It & Give You a Plan
    I’ll look over what you’ve sent and tell you exactly what I can produce, how long it’ll take, and what it’ll cost.

  3. I Build the CAD
    I create the drawings or models you need — clean, accurate, and workshop‑ready.

  4. You Review & Request Changes
    You check the work. If anything needs adjusting, I sort it. Simple.

  5. Final Files Delivered
    You get the finished drawings/models in the formats you need — ready for fabrication, machining, CNC, or whatever the job requires.

Let's Get Your Project Moving

Tell me what you need help with: drawings, models, or something more unusual.
I’ll get back to you quickly.

Got images or sketches you want to send? Email works best:
